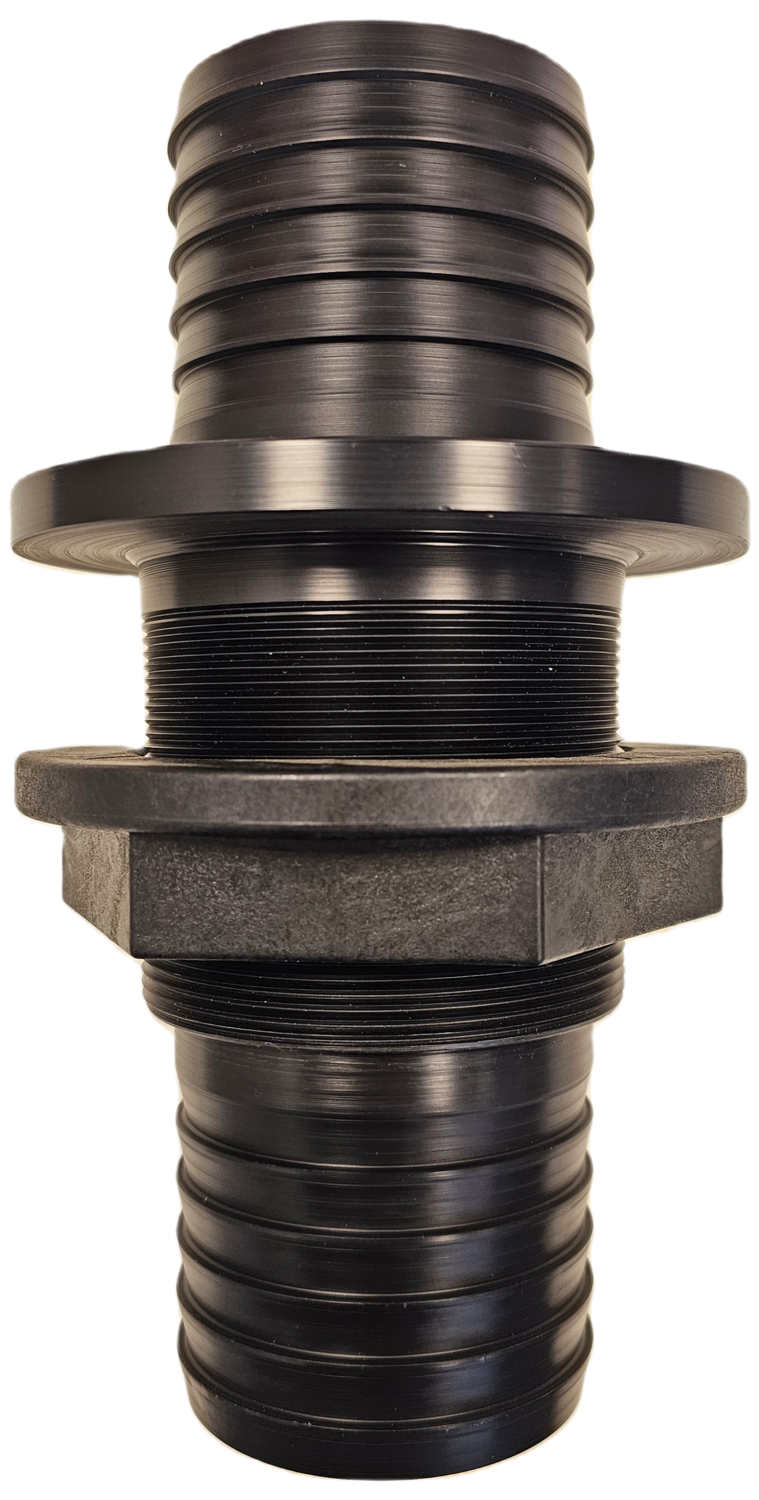

In case a passage of a water tight bulk head must be made, this high strenght composite water tight bulk-head connector can be used to create a sealed connection
Overall length: 230mm
Hose connection outside diamter: 76mm (76mm is the inside diamter of the hose for this connection)
Hose connection barb lenght: 70mm
Threaded section: 2.5" BSP
Lenght of threaded section: 80mm
Flange Diameter: 115mm
Thread lenght: 70mm
Thickness of 2.5" Nut: 16mm
Max bulkhead thickess: 50mm (in that case 100% thread of nut is used)
Material: High density POM / Delrin
Flange to be sealed with Sikaflex 291i for water tight connection
