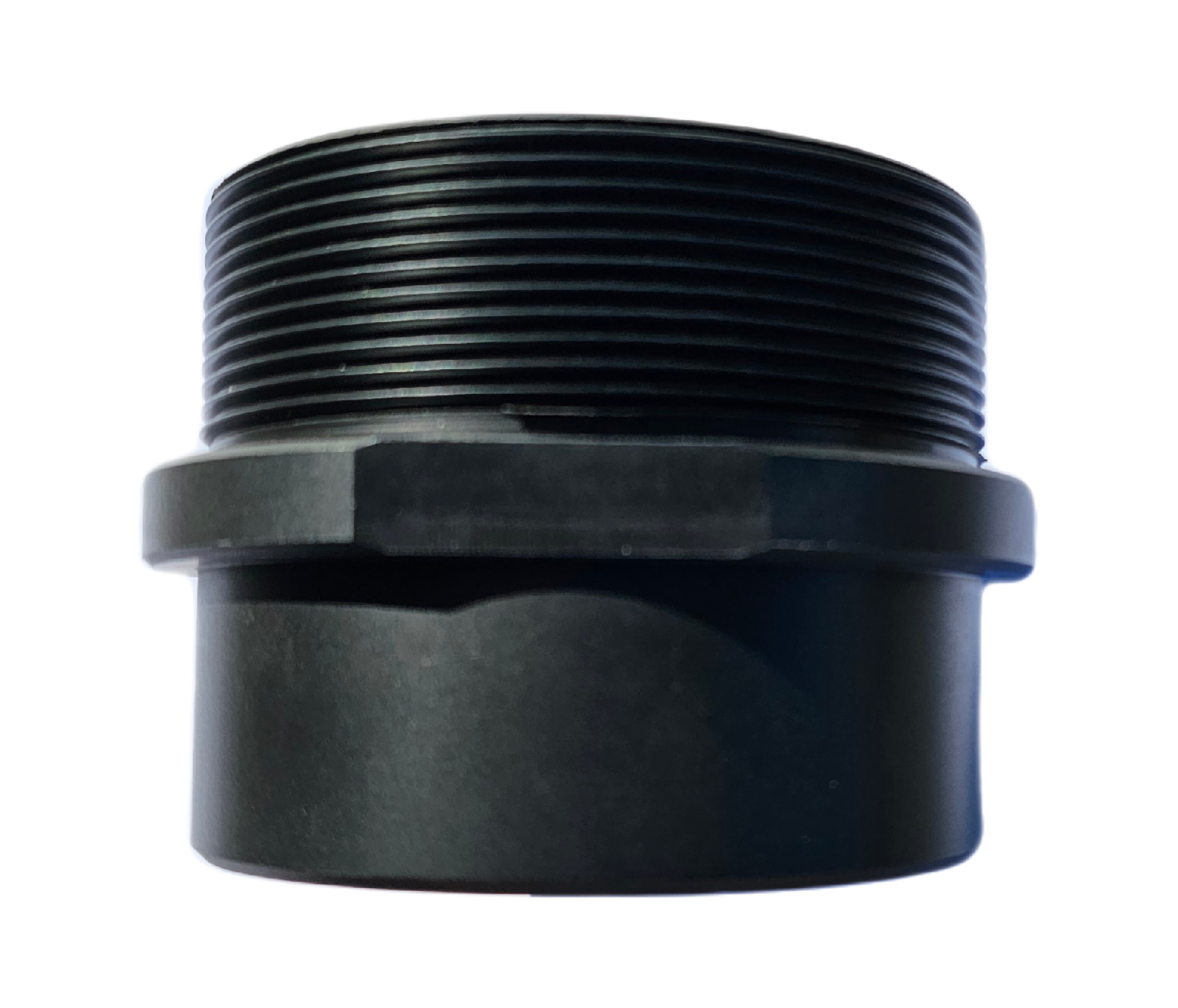

Nipple (Reducing)
- 3" BSP Female thread (Outside)
- 2.5" BSP Male thread (Inside)
- Material: POM plastic composite, corrosion resistant
This nipple can serve as a reducing adapter when transitioning from a 2.5" BSP to a 3" BSP Ball valve assembly. For instance, if the JT50 inlet components are configured in the 2.5" setup and you prefer to upgrade from the 2.5" BSP SS316 ball valve into to a Composite 3" BSP Tru-Design Valve, you will need these nipples to connect the valve with the water inlet assembly and the 76mm hose connector on the other side of the valve.
The complete composite intake assembly is configured with the following parts (Part list for fully composite Water intake assembly (JT30 -JT50 only)
Water Inlet 3" JT30/JT50 | WS-I-302-00 | Composite PA |
Elbow 90-degree 3"-2'5" | WS-I-346-GF | Composite PA |
Nipple 3"-2.5" | WS-I-265-00 | POM |
Ball Valve 3" | WS-I-382-00 | Composite PA |
Nipple 3"-2.5" | WS-I-265-00 | POM |
Hose connector | WS-I-310-00 | SS316 |
