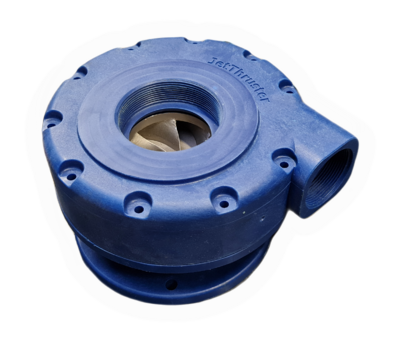

Note: This pump head is suitable for Vertical placed pumps with a 3" BSP threaded inlet side
Jet Thruster pump units are close coupled pump. This allows to slide off the pump head from the motor shaft without dismanteling the pump head assembly.
In case you need to replace the pump head only, the complete assembles and tested pump head allows rapid and easy change.
The pump head assembly is fully assembled and had been tested under working conditions in our water test facility:
Included parts:
1x WS-P-501-00 : Pump head JT30/JT50 Compact with 3" machined inlet threaded side
1x WS-P-506-00 : Stainless steel Impeller
1x WS-P-120-00 : Lipseal #1
1x WS-P-121-00: Lipseal #2
1x WS-P-123-00 : Spacer between lipseal
1x WS-P-106-00 : Ball Bearing
1x WS-P-505-00 : Pump Shaft Alu-Bronze
1x WS-P-502-00 : Pump flange
1x WS-P-514-00 : o-ring
